Kowloon Park swimming pool: refloating a sunken floor panel
A movable pool-floor panel sank to the bottom of the pool. Divers raised it evenly using inflatable hoses and floats.
- Year
- 2009
- Location
- Kowloon Park, Tsim Sha Tsui
- Status
- Completed
- Category
- Underwater & marine
Not all diving is at sea. At Kowloon Park the movable floor panel of a swimming pool had sunk to the bottom and had to be raised without damage.

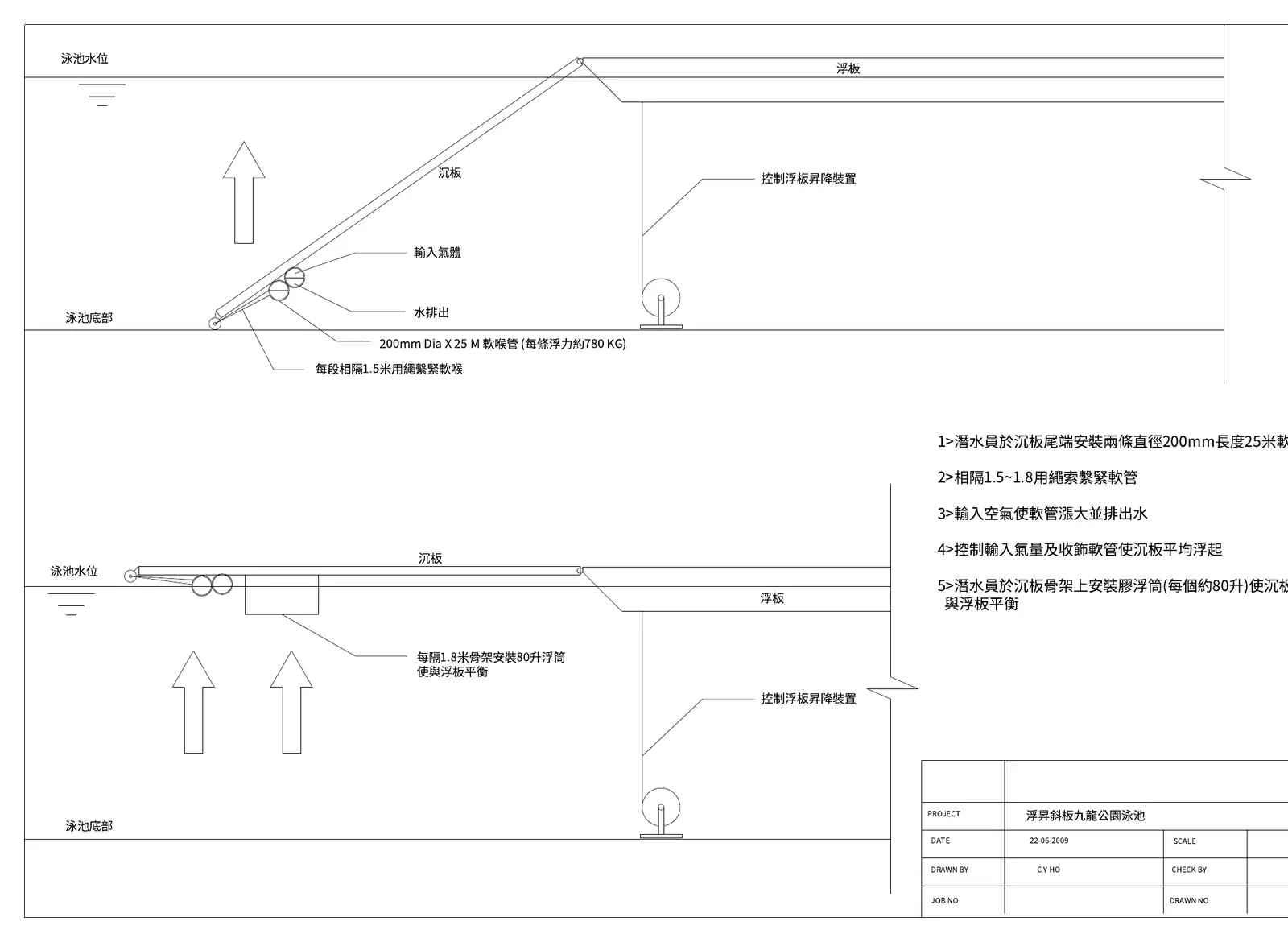

- Divers tied two Ø200 mm × 25 m hoses to the tail of the panel, lashed every 1.5 m. Each hose gives about 780 kg of lift.
- The hoses were inflated to push the water out.
- The air was fed in steadily so the panel rose level.
- Once it floated, 80-litre floats were fixed every 1.8 m to hold it in balance with the floating section.
We also drew the 6-wheel and 12-wheel hydraulic jack carriages for the panel mechanism.
Drawings
