North Point: removing old dolphins beside the Island Eastern Corridor
Old concrete dolphins on bored piles were lifted out by crane barge after divers cut each pile 500 mm below the seabed.
- Year
- 2011
- Location
- North Point, Hong Kong Island
- Status
- Completed
- Category
- Underwater & marine
Old concrete dolphins stood on bored piles beside the Island Eastern Corridor at North Point, in a seabed at −4.0 to −5.2 mPD.

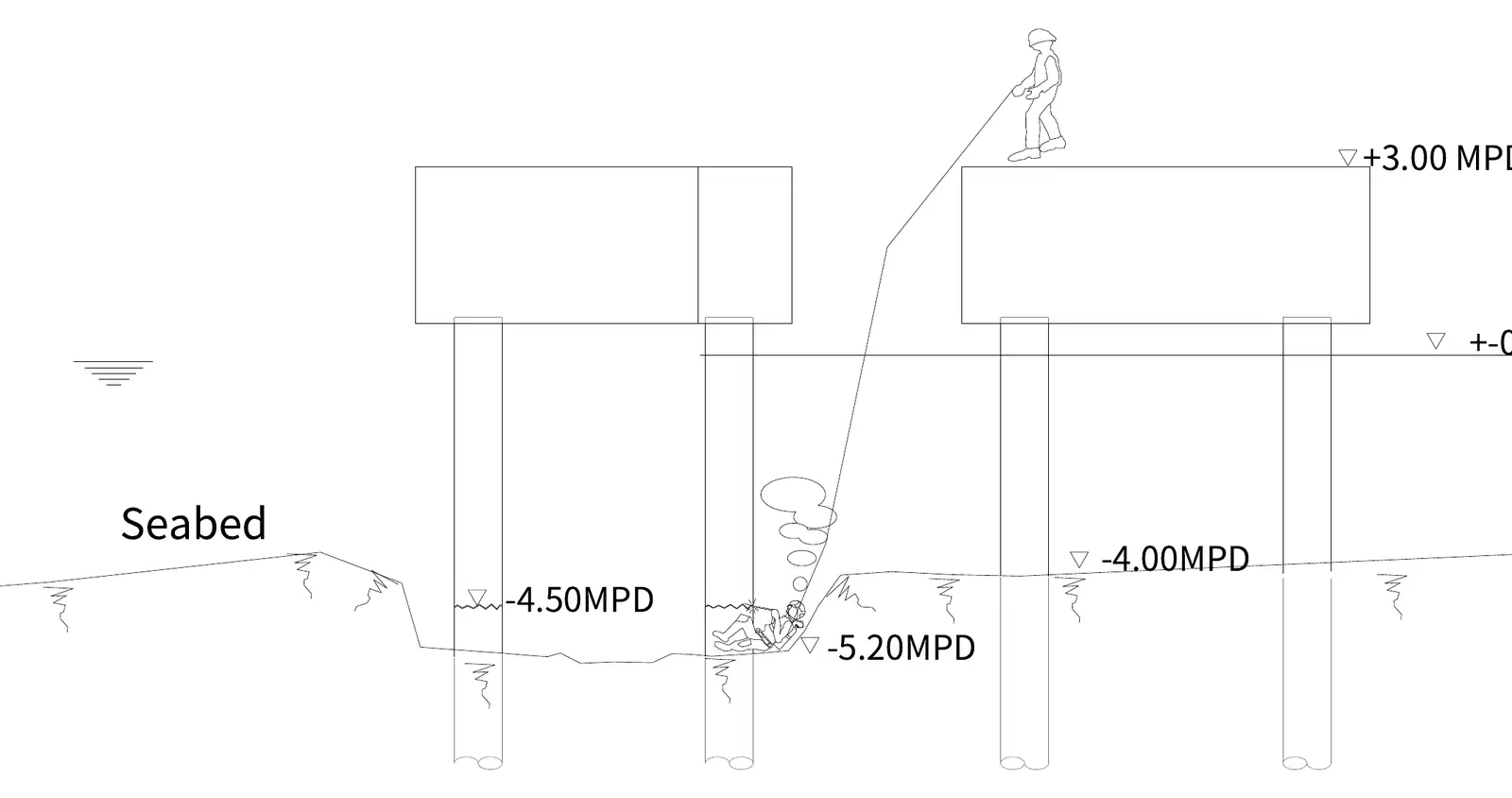

- Divers hand-dug around each pile.
- They cut the pile about 500 mm below the seabed, so nothing would be left standing proud.
- A crane barge lifted the dolphin cap and piles onto a flat-top barge.
- The dolphin was taken away and broken up.
The same drawings include a diver CCTV survey of drains at the Wan Chai waterfront, from Ø150 PVC to Ø2,100 mm concrete.
Drawings
